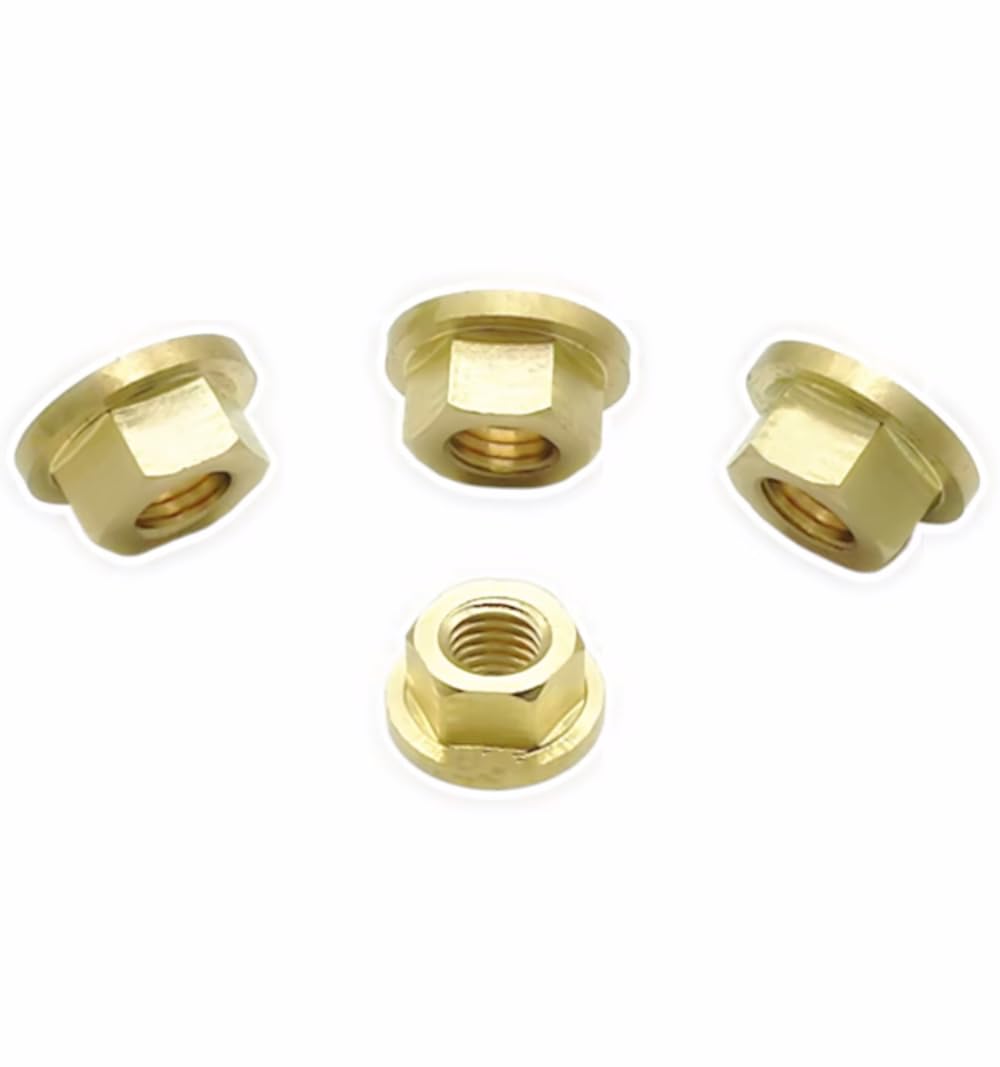

Flange nut M10x1.5 2pcs Brass Hexagonal Flange nut Lock nut

1.Durable material: Choose high-quality brass with good corrosion resistance and wear resistance. 2. Standard hexagonal, easy to use, increases work efficiency. 3. Deep thread, uniform pitch, stable force, and good tightening force. 4. The surface is flat and smooth without burrs, with high-quality workmanship and quality assurance. 5. Scope of application: Widely used in fields such as electrical, light industry, mechanical manufacturing, and construction industry.

• 1. Material: Brass
• 2. Size: Please refer to the attached figure for the detailed dimensions of the mm product.
• M4 pitch: 0.7 Nut height: 4.9-4.7 Hexagon opposite side: 7.0-6.78 Shim diameter: 10.3 Shim thickness: 1.5 M5 pitch: 0.8 Nut height: 5.0-4.7 Hexagon opposite side: 8.0-7.78 Shim diameter: 11.8 Shim thickness: 1.5
• M6 pitch: 1.0 Nut height: 6.0-5.7 Hexagon opposite side: 10.0-9.78 Shim diameter: 14.2 Shim thickness: 2.0 M8 pitch: 1.25 Nut height: 8.0-7.64 Hexagon opposite side: 13.0-12.73 Shim diameter: 17.9 Shim thickness: 2.5
• M10 pitch: 1.5 Nut height: 10.0-9.64 Hexagon opposite side: 15.0-14.73 Shim diameter: 21.8 Shim thickness: 2.5 M12 pitch: 1.75 Nut height: 12.0-11.57 Hexagon opposite side: 18.0-17.73 Shim diameter: 26.0 Shim thickness: 3.0
